In radar systems—on the ground, in the air, or at sea—performance isn’t accidental. It’s engineered. And long before software or signal processing comes into play, radar reliability is determined by something fundamental: mechanical precision.
At Penn Engineering, we design and manufacture precision waveguide components that form the physical backbone of high-performance radar systems. Because when signal integrity matters, tolerances matter first.
Built for Radar Environments That Don’t Forgive Errors
Radar platforms operate under extreme conditions—vibration, temperature swings, shock, and long duty cycles. Even small mechanical inconsistencies in the RF path can introduce reflections, insertion loss, and alignment issues that quietly degrade performance over time.

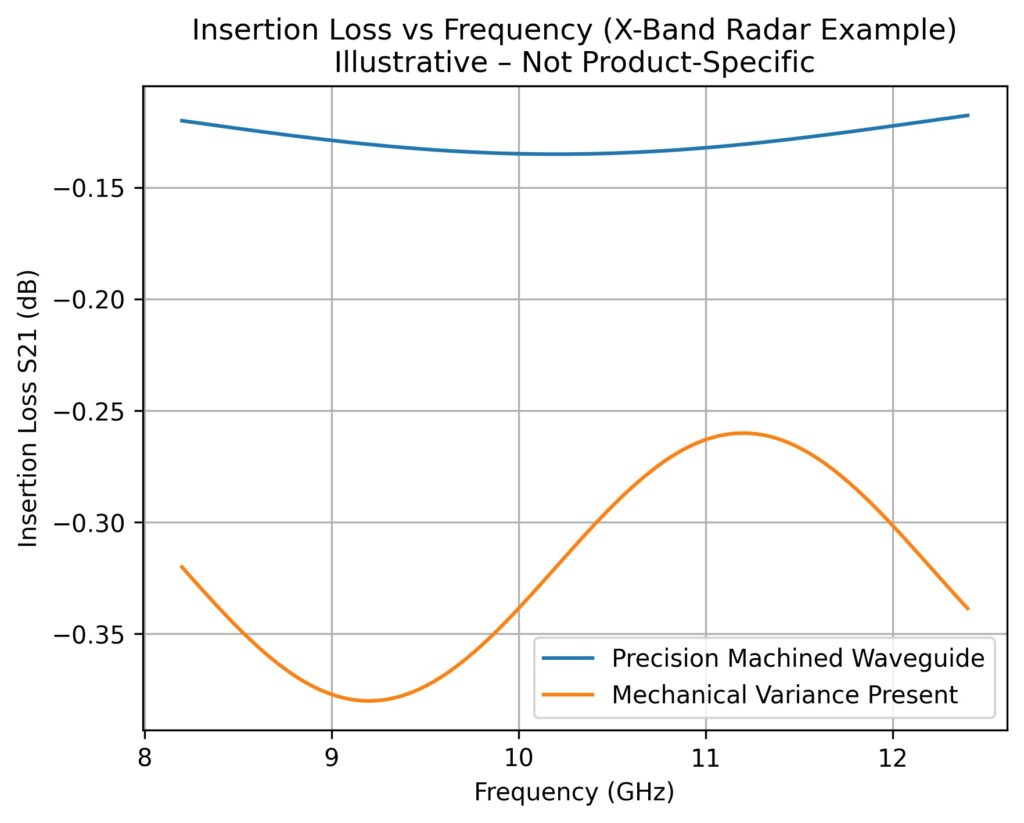

Illustrative X-band example showing how mechanical accuracy impacts insertion loss (S21). Small alignment and tolerance variations introduce measurable loss and ripple that can degrade radar performance over time.
Penn waveguide solutions are engineered to eliminate those risks at the source, including:
- Straight waveguide sections with tight dimensional control
- Precision E-plane and H-plane bends for predictable signal behavior
- Flanges and transitions for repeatable, low-loss interfaces
- Custom assemblies built to exact system requirements
Radar systems don’t tolerate “close enough.” Neither do we.
Mechanical Accuracy Is a Performance Requirement
Electrical performance and mechanical precision are inseparable. Small dimensional variations can create measurable RF problems downstream.
Penn Engineering focuses on:
- Tight tolerances that preserve signal integrity
- Precision alignment that minimizes reflections and insertion loss
- Mechanical stability under vibration and temperature extremes
The result: waveguide hardware that performs exactly as modeled—on the bench, in testing, and in the field.
From Prototype to Production—Without Compromise
From early-stage radar prototypes to full-scale production programs, Penn delivers consistent mechanical accuracy at every build stage.
That reliability means:
- Fewer integration issues
- Predictable RF performance
- Reduced risk during qualification and deployment
Engineering you can measure. Performance you can trust.
If your radar system depends on precision waveguide components built to perform under real-world conditions, Penn Engineering delivers the accuracy your system demands.
Penn Engineering Components

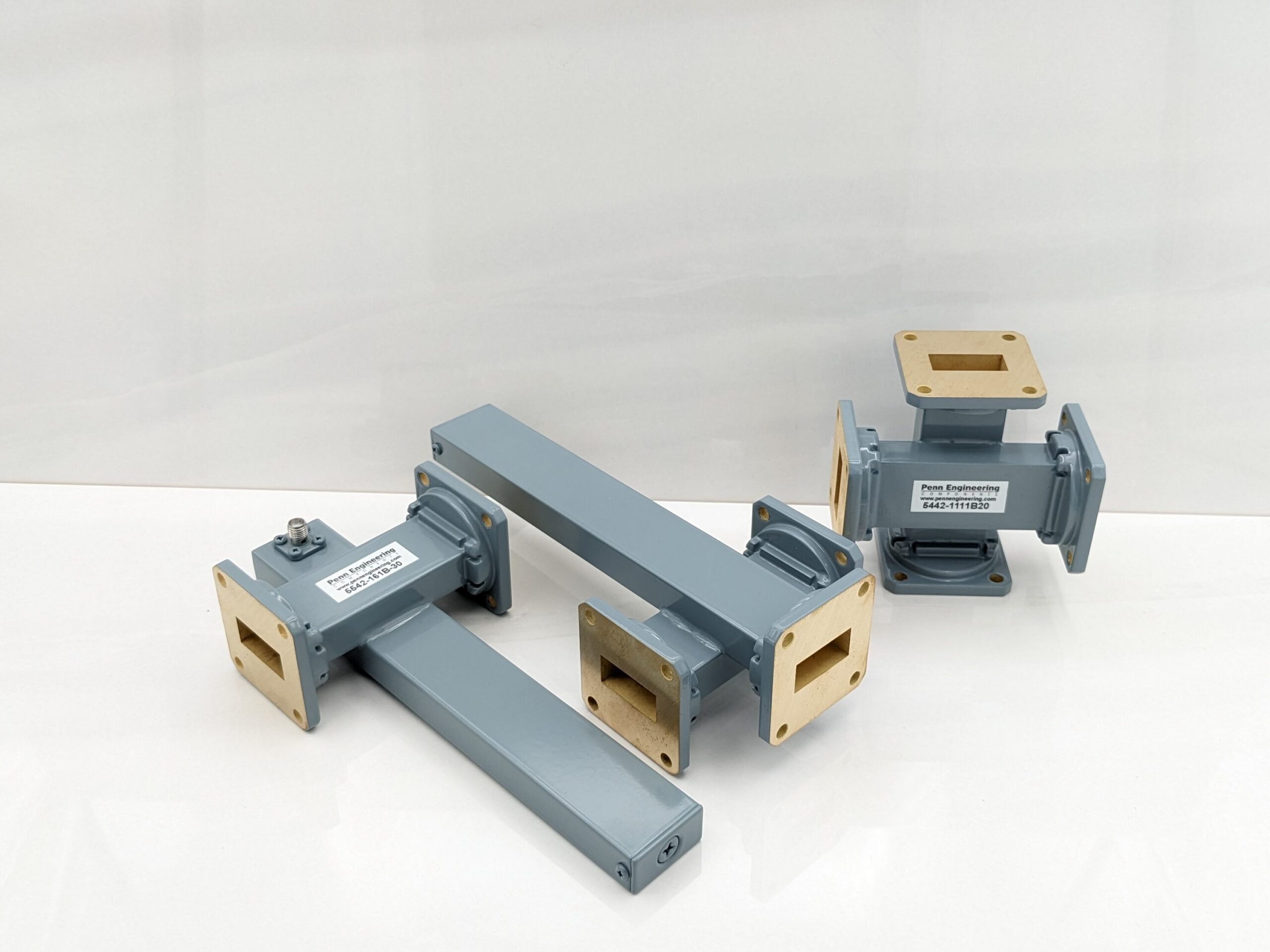

Standard Components
A certified portfolio of standard waveguide components, precision manufactured and electrically tested to support military, laboratory, and commercial systems.
Customization is available to align standard components with exact performance or mechanical requirements.
Custom Components
Qualified to manufacture space-flight components and custom waveguide solutions for defense programs and advanced testing laboratories.
With more than 35 years of experience delivering high-quality custom waveguide assemblies, manufacturing capabilities support MIL-SPEC requirements, commercial standards, and customer-defined specifications—without compromise.
