Why 5G mmWave Waveguides Demand Microscopic Mechanical Precision
At mmWave frequencies, microscopic dimensional variations translate directly into measurable VSWR spikes. Here is what RF engineers must prioritize to maintain signal integrity.
Designing base stations for 5G mmWave waveguide applications requires pushing frequencies higher and wavelengths shorter. Operating in these high-frequency bands exposes an exacting reality: waveguide machining tolerances become incredibly unforgiving.
A microscopic dimensional shift that might be negligible at lower frequencies will cause compounding VSWR spikes, severely degrading your telecommunications or radar system’s performance.
Why Millimeter-Wave Frequencies Amplify Dimensional Variations
As wavelengths shrink, the physical dimensions of your RF components must scale with rigorous accuracy. Minor variations in internal geometry create unwanted reflections and phase errors. To maintain optimal signal integrity, engineers must hold three specific mechanical waveguide specifications to tight tolerances:
- Waveguide Flange Flatness: Essential for minimizing RF leakage and ensuring a seamless, low-loss mate between interconnecting components.

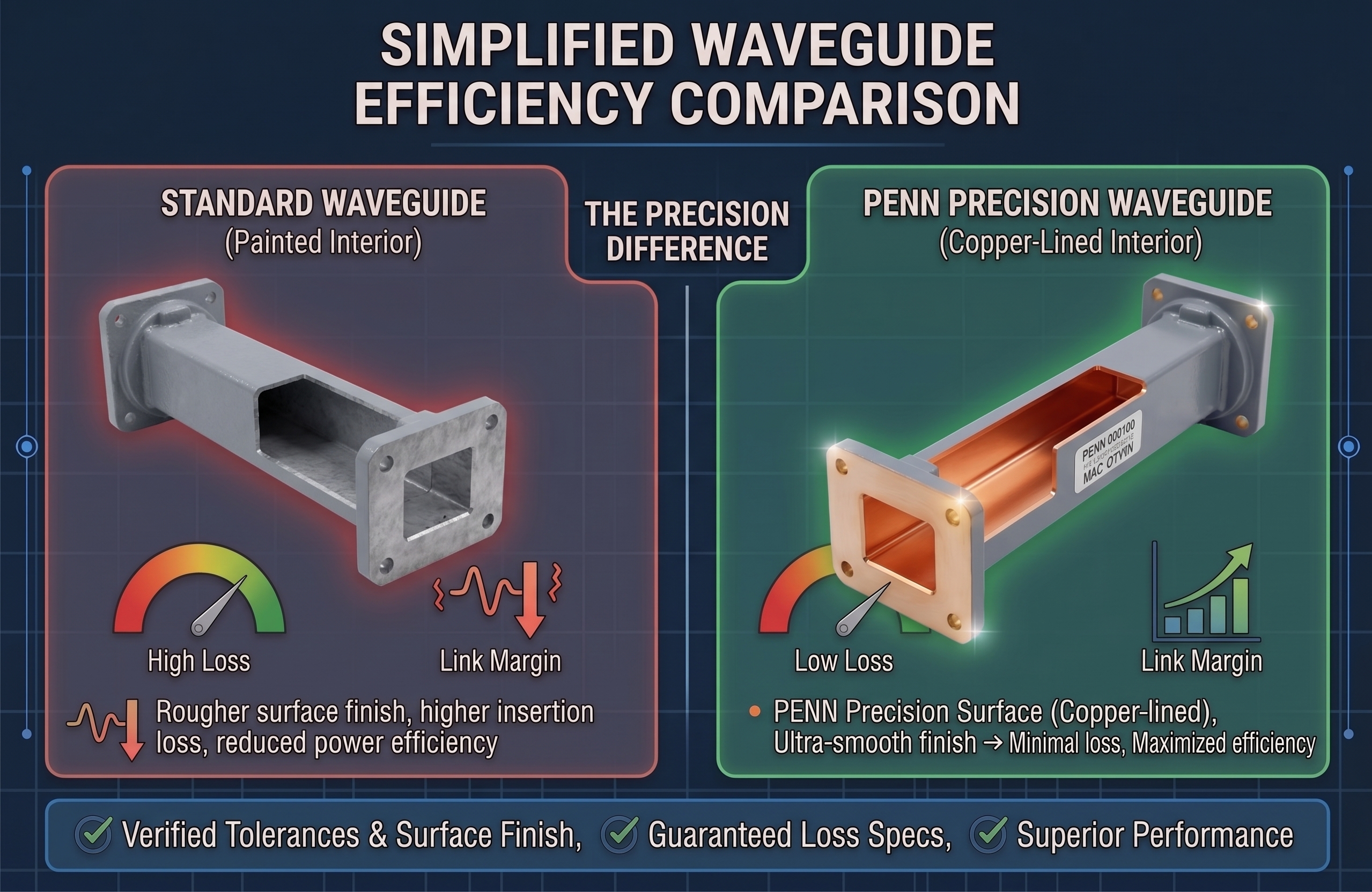

- Internal Surface Finish: Critical for minimizing insertion loss, as the skin effect forces high-frequency RF current to travel along the outermost edges of the conductor.
- Dimensional Straightness: Engineered to minimize phase distortion and mitigate unwanted reflections from compounding along the transmission line.
Evaluating Millimeter-Wave Component Supplier Capability
Not every manufacturing facility can hold these demanding tolerances. When sourcing millimeter-wave waveguide components, it is critical to look past the datasheet and evaluate a supplier’s actual precision CNC machining capabilities. Do they utilize the advanced metrology equipment required to verify sub-mil precision? Can they consistently repeat that mechanical accuracy at volume?
At Penn Engineering, our precision machining processes are engineered specifically for the exact demands of mmWave infrastructure waveguide systems. We hold the tight dimensional tolerances—verified to spec—that keep VSWR in check, delivering the mechanical reliability your 5G networks require to perform at their peak.
Ready to minimize insertion loss and maximize signal integrity?
